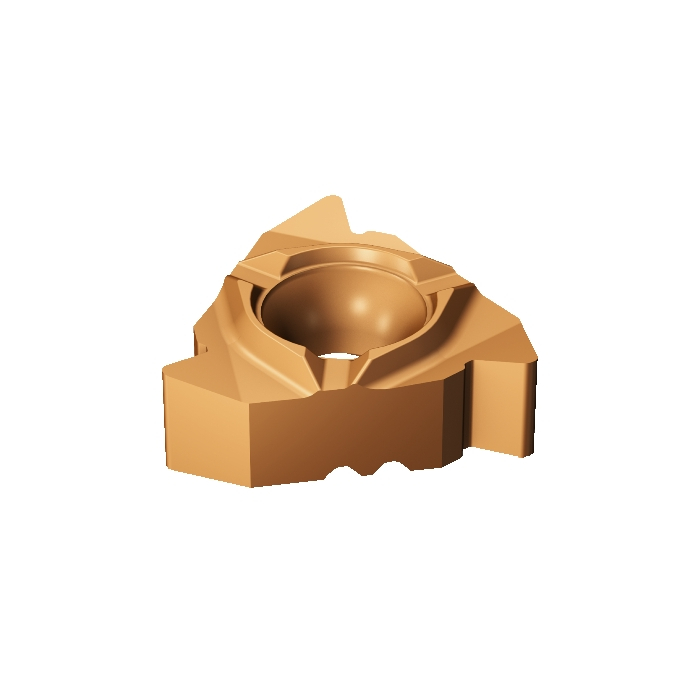

Sandvik Coromant 266LG-16WH01A190M 1125 CoroThread™ 266 insert for thread turning

Name: Sandvik Coromant 266LG-16WH01A190M 1125 CoroThread™ 266 insert for thread turning
SKU: 5781839
Price: 469.20 ZAR
Availability: OutOfStock

Be the first to review this product

R 469,20 inc. vat

Out of stock

SKU

5781839

CoroThread® 266 insert for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroThread® 266 insert for thread turning

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	0.009kg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	9.525mm
Insert Thickness	3.96875mm
D1 - Fixing Hole Diameter	4.4mm
HA - Theoretical Thread Height	1.06mm
HB - Thread Height Difference	0.19mm
TPI - Threads Per Inch	19
PDX - Profile Distance Ex	0.8mm
PDY - Profile Distance Ey	1.32mm
ORDCODE	266LG-16WH01A190M 1125
CHANGEDATE	2022-06-23 11:55:00.000
STDNO - Standard Number	BS-84-1957
Hand	L
IFS - Insert Mounting Style Code	8
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_TCE16L_1
Grade	1125
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	A
THFT - Thread Form Type	WH55
TPT - Thread Profile Type	F
TTP - Thread Type	EXT
TCTR - Thread Tolerance Class	CLASSA
CEDC - Cutting Edge Count	3
NT - Tooth Count	1
