Sandvik Coromant 391.05-60 80 030 VL to arbor adaptor
R 6 338,80
inc. vat
Out of stock
SKU
5759392
VL to arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
VL to arbor adaptor

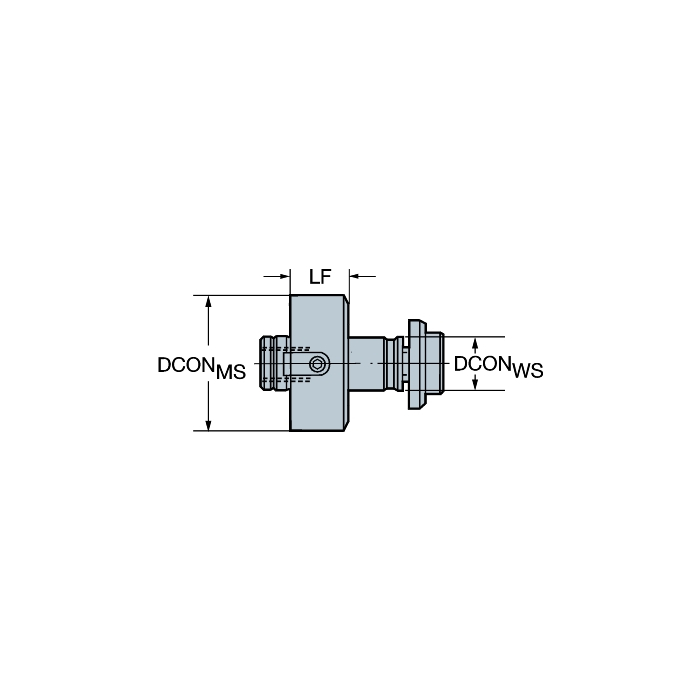

| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 60mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 30mm |
| BD - Body Diameter | 130mm |
| LB - Body Length | 30mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 180Nm |
| WT - Weight Of Item | 4268.6g |
| OAL - Overall Length | 48mm |
| OHX - Maximum Overhang | 30mm |
| DBC - Diameter Bolt Circle | 101.6mm |
| ORDCODE | 391.05-60 80 030 |
| ADINTMS - Adaptive Interface Machine Direction | M_VLS01_C0800_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDA1C4_G6000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-27 19:15:00.000 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
