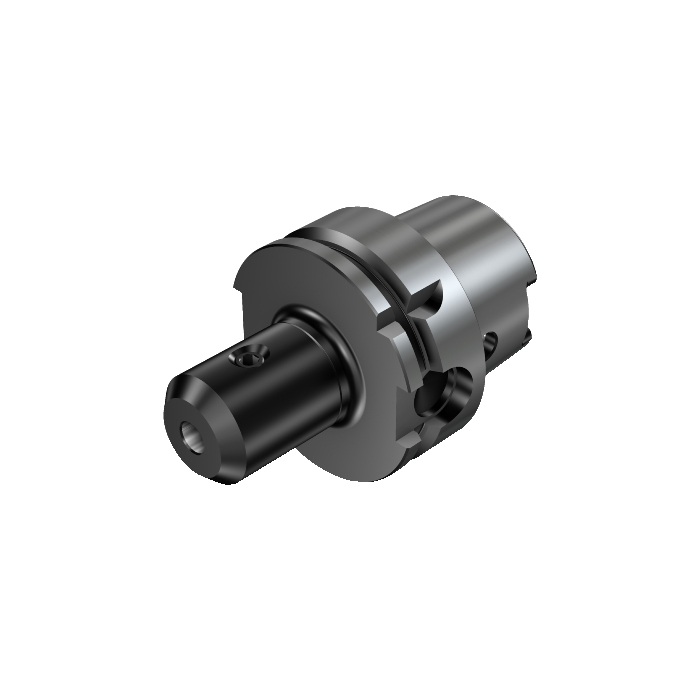

Sandvik Coromant 392.41020-100 16 100A HSK to Weldon adaptor

Name: Sandvik Coromant 392.41020-100 16 100A HSK to Weldon adaptor
SKU: 5759917
Price: 4926.60 ZAR
Availability: InStock

R 4 926,60 inc. vat

In stock

SKU

5759917

HSK to Weldon adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

HSK to Weldon adaptor

More Information
CP - Coolant Pressure	2000000Pa
DFC - Functional Diameter	75.013mm
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
BD - Body Diameter	100mm
LB - Body Length	100mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	15Nm
RPMX - Rotational Speed Maximum	125001/min
WT - Weight Of Item	2.983kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	100mm
LSC - Clamping Length	53mm
ORDCODE	392.41020-100 16 100A
ADINTMS - Adaptive Interface Machine Direction	M_HSK01_C1000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLW_G1600_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2021-12-20 22:25:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	DIN69893-1
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
