Sandvik Coromant 970-IB50-20-106 BIG-PLUS ISO to CoroChuckâ„¢ 970
R 22 550,35
inc. vat
Out of stock
SKU
6974159

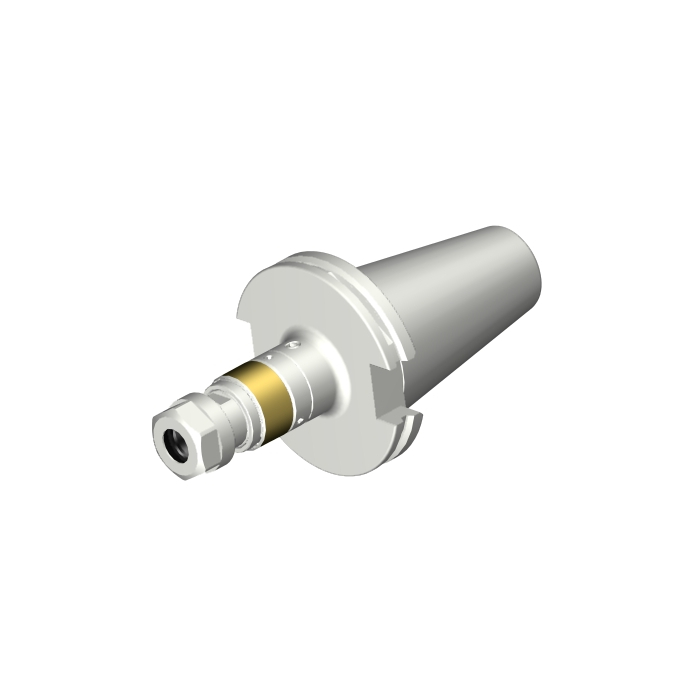

BIG-PLUS ISO to CoroChuck™ 970
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS ISO to CoroChuck™ 970
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 20mm |
| DCON - Connection Diameter | 20.8mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 93.2mm |
| BD - Body Diameter | 33.7mm |
| LB - Body Length | 101.2mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 80001/min |
| WT - Weight Of Item | 2.945kg |
| OAL - Overall Length | 202.8mm |
| OHX - Maximum Overhang | 93.2mm |
| ORDCODE | 970-IB50-20-106 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG17BP_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CLTERBT_C0200_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | M24 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-29 08:02:00.000 |
| STDLET - Standard Letter | AD/AF |
| STDNO - Standard Number | ISO7388-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
