CP86150 WORKSHOP PRESS - 15 TON
R 58 277,34
inc. vat
In stock
SKU
CP-8941086150
Reliable nationwide shipping
Delivery in 4 - 5 days

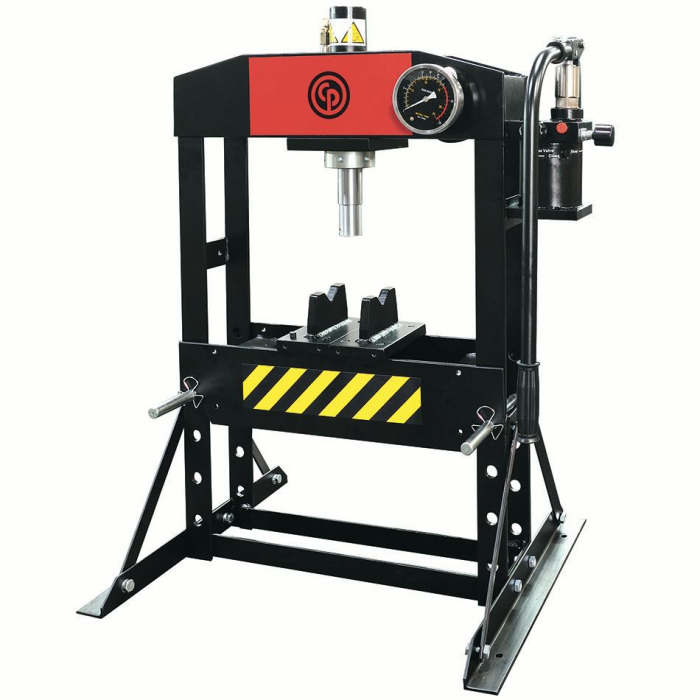

15 Ton Workshop Press. Compact, durable & sturdy.
Benefits
- High stability
- Durable & sturdy
- Precision
- Easy control
- Stable
- Comfort
CE Certificate
Operators Manual
Operators Manual
Exploded View 1
Exploded View 2
Exploded View 3
Safety Instructions & Data Sheets
| Metric | Imperial | |
|---|---|---|
| Model | CP86150 | |
| Part number | 8941086150 | |
| Description | CP86150 workshop press | |
| Capacity | 15 ton(s) | 16.53 short ton(s) |
| Dimension A | 700 mm | 27.6 " |
| Dimension B | 540 mm | 21.3 " |
| Dimension C | 882 mm | 34.7 " |
| Dimension E | 500 mm | 19.7 " |
| Dimension F | 120 mm | 4.7 " |
| Dimension F1 | 157 mm | 6.2 " |
| Dimension F2 | 457 mm | 18 " |
| Dimension R | 160 mm | 6.3 " |
| European Standards | EN 693:2001 + A1 + A2 | |
| Length | 166.4 mm | 75.5 " |
| Net weight | 75.5 kg | 166.4 lb |
| Oil capacity | 0.6 ml |
- 2 holes in each foot to fix in the floor
- Steel frame
- 2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine-tuning of the load
- Large gauge measuring short and metric tons
- Delivered with 2 V blocks
- Easy to use handle with rubber grip
