Sandvik Coromant QS-SVJCR1616E11HP CoroTurn™ 107 QS shank tool for turning

Name: Sandvik Coromant QS-SVJCR1616E11HP CoroTurn™ 107 QS shank tool for turning
SKU: 6010232
Price: 4602.30 ZAR
Availability: InStock

Be the first to review this product

R 4 602,30 inc. vat

In stock

SKU

6010232

CoroTurn® 107 QS shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 QS shank tool for turning

More Information

More Information
CP - Coolant Pressure	8000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	70mm
TQ - Torque	0.9Nm
WT - Weight Of Item	0.117kg
OAL - Overall Length	92mm
OHX - Maximum Overhang	28mm
LSC - Clamping Length	42mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	50deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	16mm
HF - Functional Height	16mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	3.175mm
H - Shank Height	16mm
B - Shank Width	16mm
ORDCODE	QS-SVJCR1616E11HP
ADINTMS - Adaptive Interface Machine Direction	M_PMC10_A1616_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	7
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:03:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_VC1103_1
Hand	R

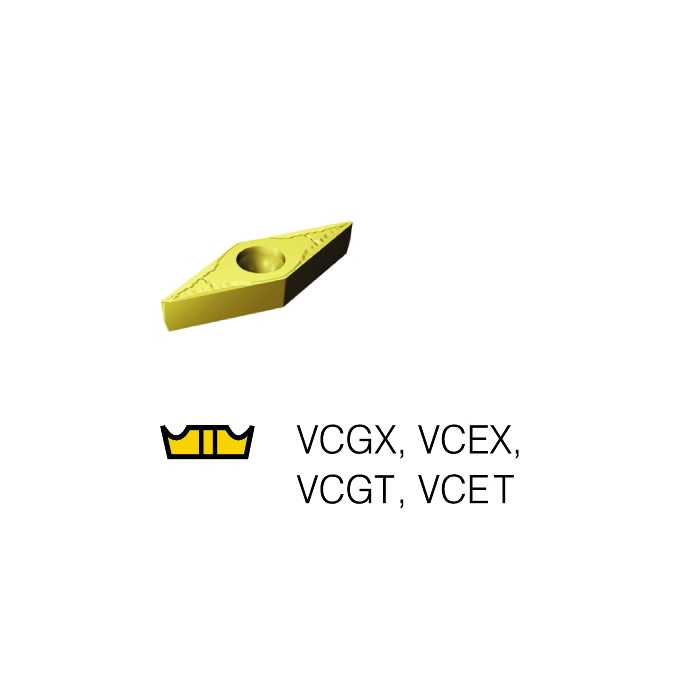

MIID - Master Insert Identification	VCMT 11 03 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	V
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
