Sandvik Coromant R166.0G-16UN01-080 H13A T-Max™ U-Lock insert for thread turning

Name: Sandvik Coromant R166.0G-16UN01-080 H13A T-Max™ U-Lock insert for thread turning
SKU: 5742029
Price: 340.40 ZAR
Availability: OutOfStock

Be the first to review this product

R 340,40 inc. vat

Out of stock

SKU

5742029

T-Max® U-Lock insert for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® U-Lock insert for thread turning

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	4.1g
AN - Clearance Angle Major	0deg

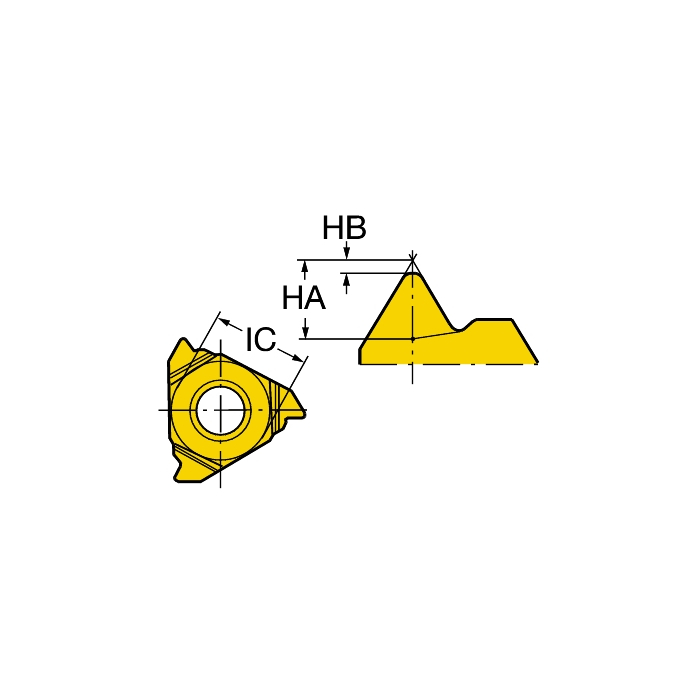

IC - Inscribed Circle Diameter	9.525mm
Insert Thickness	3.96875mm
D1 - Fixing Hole Diameter	4.4mm
HA - Theoretical Thread Height	2.38mm
HB - Thread Height Difference	0.41mm
TPI - Threads Per Inch	8
PDX - Profile Distance Ex	1.8mm
PDY - Profile Distance Ey	1.3mm
ORDCODE	R166.0G-16UN01-080 H13A
CHANGEDATE	2021-12-21 06:32:00.000
STDNO - Standard Number	ISO 5864-1978
Hand	R
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_TBE16R_1
Grade	H13A
SUBSTRATE	HW
CBMD - Chip Breaker Manufacturer's Designation	A
THFT - Thread Form Type	UN60
TPT - Thread Profile Type	F
TTP - Thread Type	EXT
TCTR - Thread Tolerance Class	2A
CEDC - Cutting Edge Count	3
NT - Tooth Count	1
