Sandvik Coromant 870-2210-22-MM 2334 CoroDrill® 870 drill tip
R 2 474,80
inc. vat
Out of stock
SKU
7358073

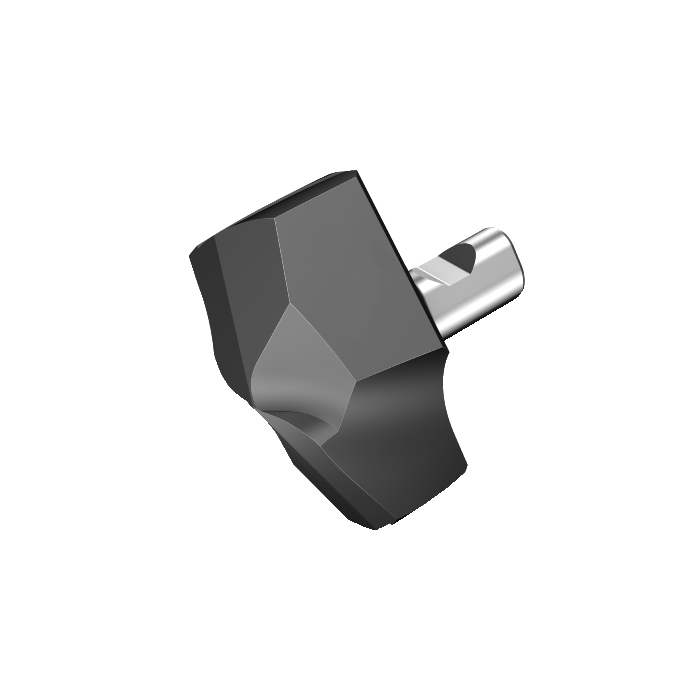

CoroDrill® 870 drill tip
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 drill tip
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 10.47mm |
| WT - Weight Of Item | 29.6g |
| OAL - Overall Length | 23.3mm |
| GAMO - Orthogonal Rake Angle | 13deg |
| Insert Thickness | 7.76mm |
| INSL - Insert Length | 13.8mm |
| DC - Cutting Diameter | 22.1mm |
| PL - Point Length | 3.33mm |
| SIG - Point Angle | 142deg |
| ORDCODE | 870-2210-22-MM 2334 |
| CHANGEDATE | 2022-04-29 01:50:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 0 |
| SSC - Insert Seat Size Code | 22 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DK22_1 |
| Grade | 2334 |
| COATING | PVD AlTiCrN |
| SUBSTRATE | HC |
| TCHA - Achievable Hole Tolerance | H9 |
| CEDC - Cutting Edge Count | 1 |
