Sandvik Coromant 870-2490-24-PM 4334 CoroDrill® 870 drill tip
R 2 639,25
inc. vat
In stock
SKU
7358196

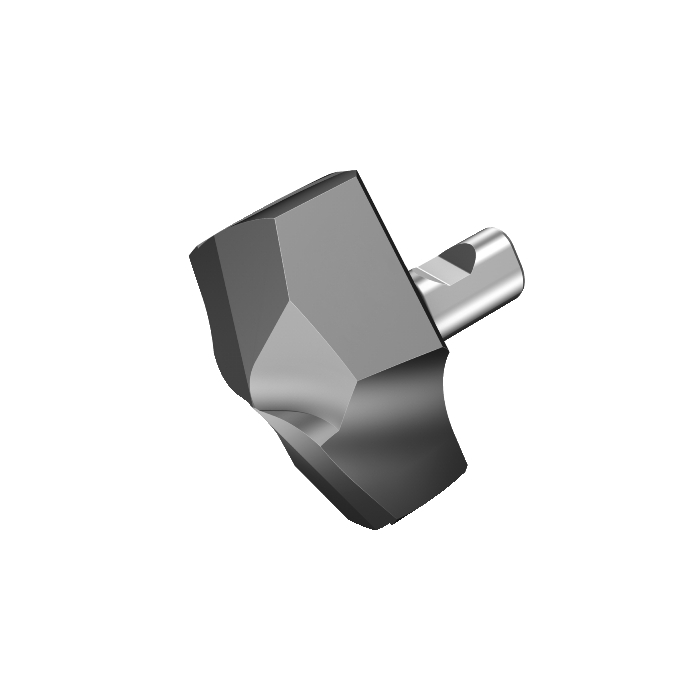

CoroDrill® 870 drill tip
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 drill tip
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 11.23mm |
| WT - Weight Of Item | 36g |
| OAL - Overall Length | 25.4mm |
| GAMO - Orthogonal Rake Angle | 13deg |
| Insert Thickness | 8.36mm |
| INSL - Insert Length | 15mm |
| DC - Cutting Diameter | 24.9mm |
| PL - Point Length | 3.77mm |
| SIG - Point Angle | 142deg |
| ORDCODE | 870-2490-24-PM 4334 |
| CHANGEDATE | 2022-04-29 01:52:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 0 |
| SSC - Insert Seat Size Code | 24 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DK24_1 |
| Grade | 4334 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| TCHA - Achievable Hole Tolerance | H9 |
| CEDC - Cutting Edge Count | 1 |
