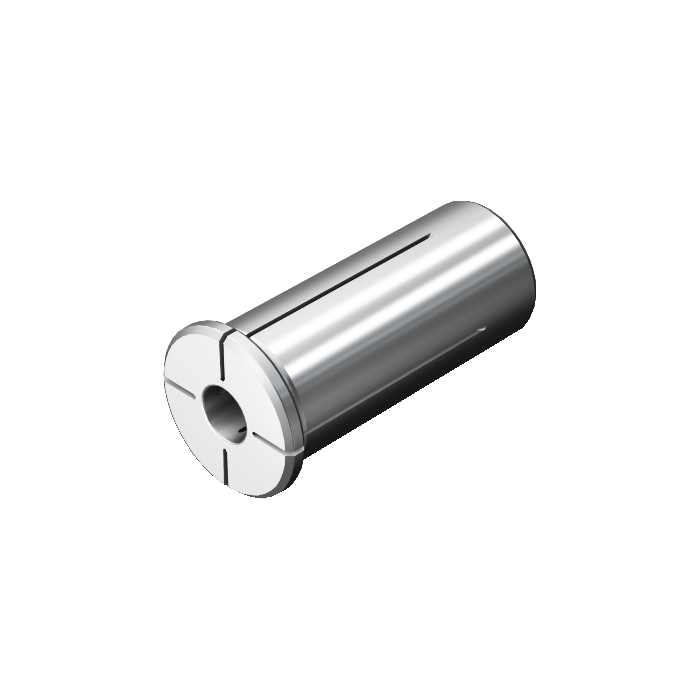

Sandvik Coromant A393.CGS-32 18.7 60 Collet
R 2 857,75
inc. vat
In stock
SKU
6426779
Collet
Reliable nationwide shipping
Delivery in 4 - 5 days
Collet
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 18.7mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 4mm |
| BD - Body Diameter | 36mm |
| LB - Body Length | 4mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 0.269kg |
| OAL - Overall Length | 64mm |
| OHX - Maximum Overhang | 4mm |
| LSC - Clamping Length | 60mm |
| ORDCODE | A393.CGS-32 18.7 60 |
| ADINTMS - Adaptive Interface Machine Direction | M_CLTH1_A0320_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLG_G1870_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 08:46:00.000 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| SEAL - Sealing Property | True |
