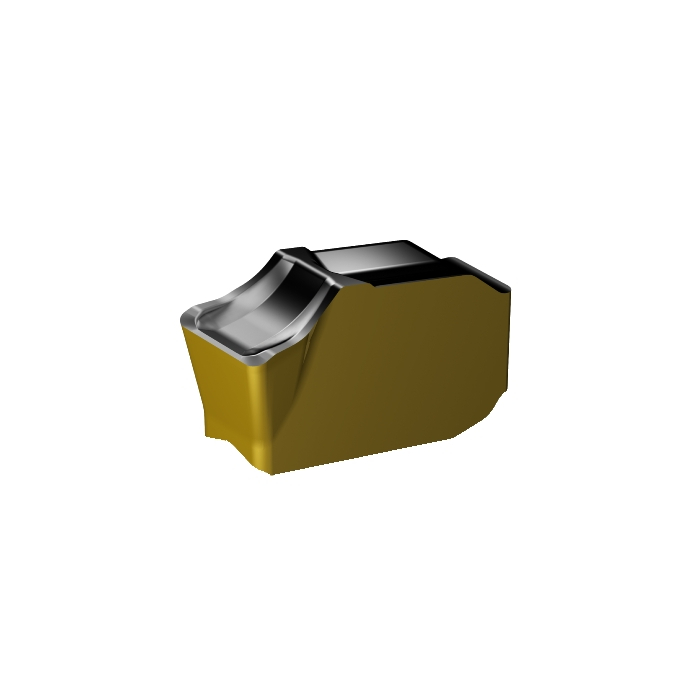

Sandvik Coromant QD-NK-0635-050M-PH 4340 CoroMill™ QD insert for grooving
R 343,85
inc. vat
In stock
SKU
7564531
CoroMill® QD insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD insert for grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.007kg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| Insert Thickness | 5mm |
| CW - Cutting Width | 6.35mm |
| CWTOLL - Cutting Width Lower Tolerance | 0.005mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.105mm |
| REL - Corner Radius Left | 0.5mm |
| RER - Corner Radius Right | 0.5mm |
| ORDCODE | QD-NK-0635-050M-PH 4340 |
| CHANGEDATE | 2022-09-23 21:21:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 7 |
| SSC - Insert Seat Size Code | K |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NOK_1 |
| Grade | 4340 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PH |
| CEDC - Cutting Edge Count | 1 |
