Sandvik Coromant R331.1A-14 50 30H-WL1025 CoroMill™ 331 insert for side & facemilling
R 399,05
inc. vat
In stock
SKU
5744752
CoroMill® 331 insert for side & facemilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 insert for side & facemilling

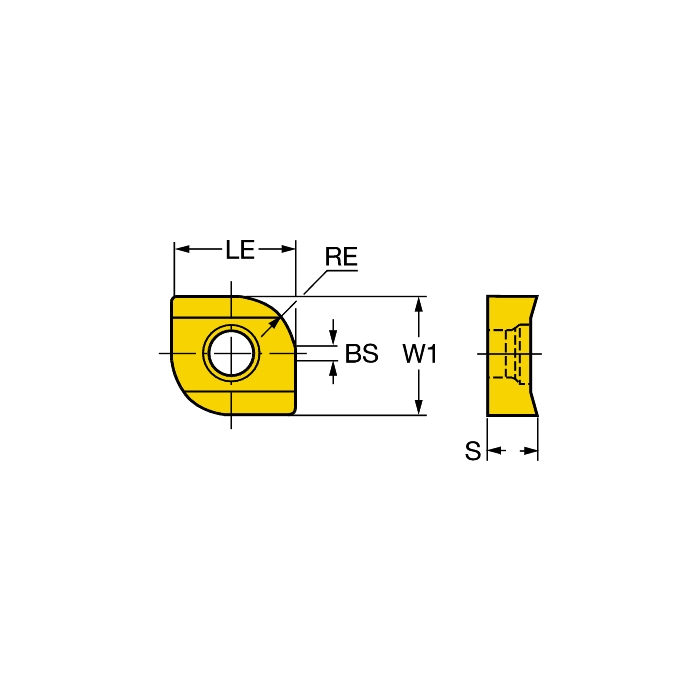

| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 9g |
| AN - Clearance Angle Major | 0deg |
| RE - Corner Radius | 3.05mm |
| Insert Thickness | 4.95mm |
| D1 - Fixing Hole Diameter | 4.6mm |
| LE - Cutting Edge Effective Length | 13.7mm |
| L - Cutting Edge Length | 14.5mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 1.3mm |
| APMX - Depth Of Cut Maximum | 13.7mm |
| W1 - Insert Width | 11.5mm |
| ORDCODE | R331.1A-14 50 30H-WL1025 |
| CHANGEDATE | 2022-09-23 16:51:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 14 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MW14_1 |
| Grade | 1025 |
| COATING | PVD TiCN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | WL |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
