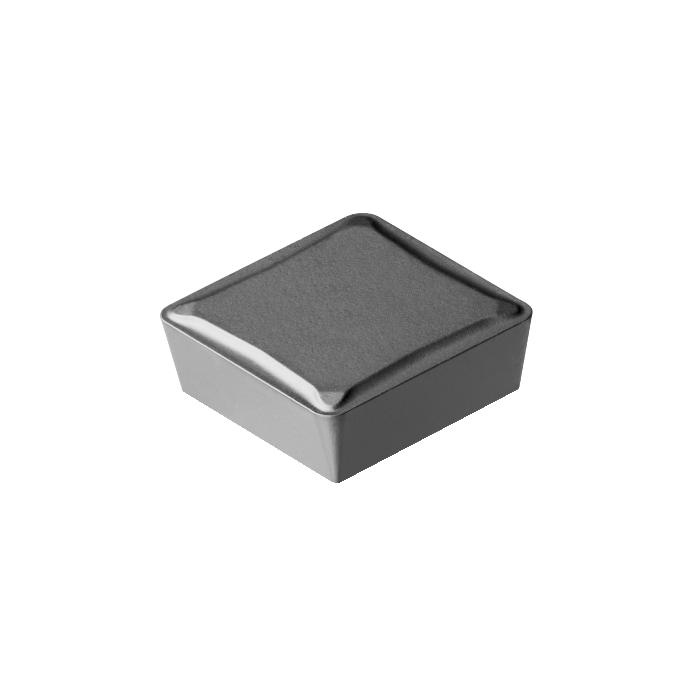

Sandvik Coromant SPMR 09 03 08-53 5015 T-Max™ S insert for turning
R 151,80
inc. vat
In stock
SKU
5751545
T-Max® S insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.9g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 3.175mm |
| LE - Cutting Edge Effective Length | 8.725mm |
| L - Cutting Edge Length | 9.525mm |
| ORDCODE | SPMR 09 03 08-53 5015 |
| CHANGEDATE | 2022-02-17 11:04:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SP0903_1 |
| Grade | 5015 |
| SUBSTRATE | HT |
| CBMD - Chip Breaker Manufacturer's Designation | 53 |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
